The MC-4SA is a multi-axis motor drive amplification system designed for use in systems where low power micro motors are required for a particular application.

The MC-4SA was designed for interfaceability to the National Instruments™ 7342 & 7344 series controllers. The MC-4SA interface connectors allow versatile connectivity based on the application and controller being used. All 4 axes may be accessed through a single cable.

Simple Connectivity

All of the difficult interfacing problems have been taken out of the hands of the user. For example; setup is simple; connect one end of the 68 conductor cable to the controller and the other to the MC-4SA, plug in your Mico-Mini™ stage and you are ready! No external power supply connections, no multi-wire motor connectons.

The MC-4SA also features a number of built-in protective devices and signal enhancement circuits such as;

Supply Rail Monitoring (SRM)
System status monitoring
Kickless Balanced Power Supply
Encoder conditioning
Reversible motor polarity

National Aperture, Inc. can provide custom electronic and mechanical design services in order to integrate the MC-4SA into your application.

AC Power input (User-selectable): 110/220 VAC
Motor control input voltage: ±10 Vdc across 300 K ohms
Encoder supply voltage: +5 Vdc
Max output power (Standard): 6 watts
Output voltage range: ±12 Vdc
Slew range: 8 V/µS, max
Voltage gain (Av): 1.2
Standard Cabling:
- CA10-10-3: 3ft. motor extension cable
- CA10-10-6: 6ft. motor extension cable
- CA10-10-9: 9ft. motor extension cable
- 186381-02: 6ft. controller amplifier interface cable
- Call for information on additional lengths

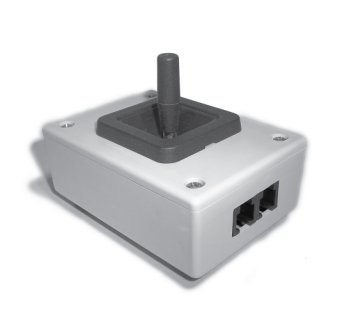

MC-4SA-Joystick-2

$163.00

Qty:

MC-4SA-Joystick-2

Single or Dual Axis Manual Positioning Control for the MC-4SA Amplifier

Features

Manually adjust linear or rotary position without writing any software
Just plug it in and you are ready for precision positioning
Integrated 2-speed control; standard jog and accelerated jog
Integrated Dual Axis Positioning System for use on the MC-4SA amplifier
Easy to use remote control
Rubber "feet" on base for easy, stable surface placement
Package includes all cabling and sample joystick software for end user development
