MC-5B | NAI

Manually Programmed Position Control

The MC-5B Micro Positioning Controller from National Aperture, Inc. was designed for ease of use and effortless integration into any application. The MC-5B is a low-cost, quick-setup solution for those applications requiring precision position control of motorized stages. Incorporated into this all-in-one controller is a keypad/display interface, a 750 mA 12 V linear DC motor amplifier, single ended (TTL) A/B quadrature encoder inputs, 5 volt limit switch inputs and a serial communication interface.

The MC-5B functions seamlessly as a single axis, stand-alone system or as a multi-axis networked system, either with or without a PC. The peer-to-peer network architecture makes it possible for every MC-5B in a multi-axis system to control every axis in the motion system. No software development or complex wiring is required. The controllers themselves may be programmed to store and recall positions and to sequence through stored positions with looping, pausing and user/program interaction. Automation may also be driven serially from a PC or host processor.

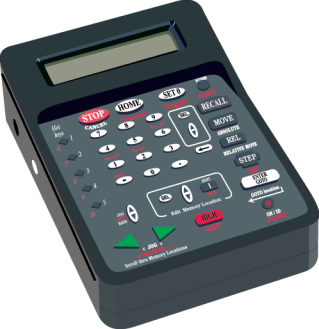

MC-5B Controller

Display: Two Line, 20 character alphanumeric LCD
Control: Keypad or PC
Optional Accessories: Communication Kit, Remote Dial Encoder Wheel, Remote Joystick
Motor Load: any 6-12 Vdc brush type motor (750 mA max)
Encoder Interface: Single ended, 5 Vdc TTL compatible A/B Quadrature Encoder Input
Remote Communication: RS-232
Dimensions: 132.08 x 190.5 x 63.5 mm
Weight: 1.25 kg
Operating Temperature: 20°C (Ambient)
Fuse: 2 Amp Bussman model ABC-2 (or equialant)

MC-5B Power Supply

Input Voltage: 100 to approximately 240 Vac
Input Frequency: 47 to 63 Hz
Input Current: 0.6 A max
Output Voltage: 15 Vdc
Output Current: 1.4 A
Operating Temp: 20°C (Ambient)
Weight: 22.7g

MC-5B Encoder Wheel
$145.00

Model MC-5B Encoder Wheel

Single Axis Manual Positioning Control for the MC-5B Servo Controller

Features

Manually adjust Linear or Rotary position without writing any software
Just plug it in and you are ready for precision positioning
Each "click" of the Encoder Wheel generates motion in increments that you define
Easy to use remote control
Large Velcro base for easy, stable surface placement
Package includes all required cabling

MC-5B Joystick
$175.00

Model MC-5B Joystick

Single or Dual Axis Manual Positioning Control for the MC-5B Servo Controller.

Features

Manually adjust Linear or Rotary position without writing any software
Just plug it in and you are ready for precision positioning
Integrated 2-Speed Control; Standard Jog and Accelerated Jog
Integrated Dual Axis Positioning System can be used on one or two MC-5B Servo Controllers
Easy to use remote control
Large Velcro base for easy, stable surface placement
Package includes all required cabling
