Custom
Reflective Apertures
Custom Only
Low setup costs compared to conventional reticle artwork
Dark field Only
Patterns: Small holes preferably less than 100µm and narrow slits, preferably less than 50µm wide, any length.
Substrates: Commercial Quality or other suitable first surface mirror, per customer choice.

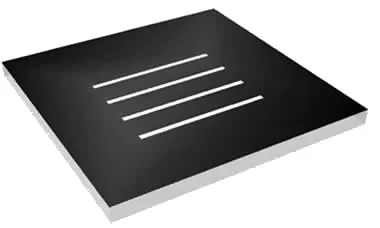

Clear Patterns, Reticles, Apertures on high power dielectric laser reflector coatings
For applications requiring transparency and/or power resistance greater than achievable with opaque (metallic, etc.) surfaces this process creates patterns on dichroic reflectors with selective transparency.
Wavelength: |
Per standard high power dielectric coating, visible and near visible |
Reflectivity: |
20% to 98%, based on requirement |
Incidence: |
0° - 90°, per specification |
|
Power Resistance: |
2-8 Megawatts/mm², pulsed |
|
Pattern Definition: |
< 1 µm (semiconductor pattern quality) |
Material: |
Glass, fused silica, etc. |
Dimensions: |
up to 6 inch (152.4mm) thickness, 0.04 inch (1.016mm) - 0.09 inch (2.286mm) |
|
Pattern Generation: |
per customer or National Aperture, Inc. via Solidworks |
Pricing: |
Quote |
