Manual Stages
MM-2 Series

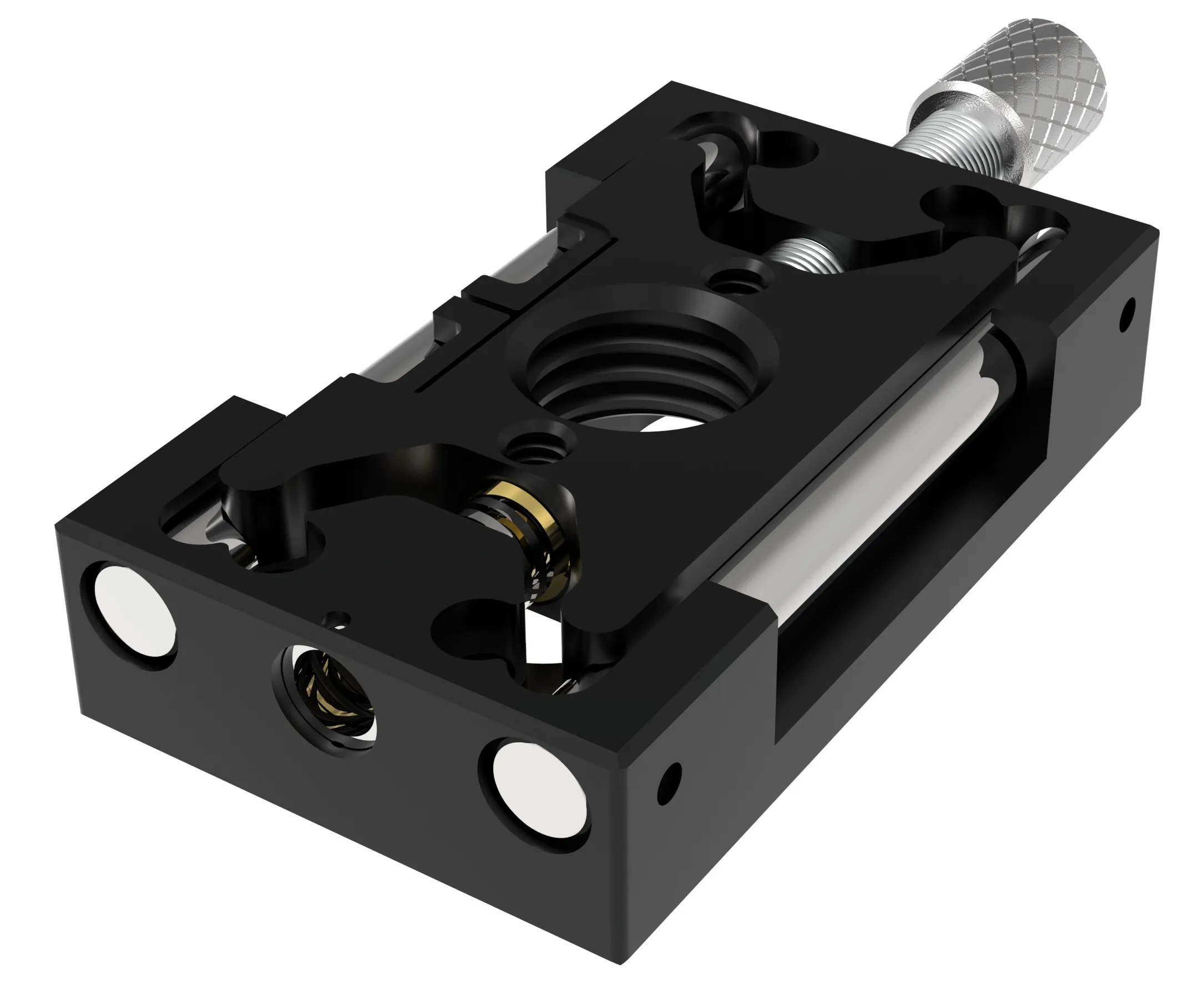

Manual MicroMini™ Stage
FEATURES
- Ultra Low Profile
- Zero Backlash
- 3D models available
- Built in Connectivity with all MM-2 manual MicroMini™ Stages
- Built in Connectivity with all MM-3 manual MicroMini™ Stages
- Built in Connectivity with all MM-3M motorized MicroMini™ Stages
- Fully English/Metric compatible (all taps and clearance holes)
When ordering multi-axis units the completed assembly will include all necessary braces, kits and hardware
GENERAL DATA:
- Moment Load capacity: 6 to 11 oz-in
- Body Height: 7.6mm
- Body Length: 31.8mm to 36.5mm
- Body Width: 19mm
- Travel Ranges: 5.0mm
GENERAL PRECISION
- Screw Pitch: 80 TPI (0.31725mm/turn)
- Adjustment Sensitivity: 0.5µm
- Wobble (max): 10 µrad
- Backlash: 0
- Runout (max): 0.6 & 1.5µm
Stage Configurator
MM-2 Series
Select your configuration and build a part number instantly.
3DX preview
See your stage in 3D and download the CAD package.
|
|
|
| Model No. | MM-2CR | MM-2CRB |
|---|---|---|
| Top Load: | 0.23 kg (8 oz.) | 0.23 kg (8 oz.) |
| Pitch: | 9.5 oz-in | 11 oz-in |
| Roll: | 8 oz-in | 8 oz-in |
| Yaw: | 6.5 oz-in | 9.5 oz-in |
| Travel: (mm) | 5.0 | 5.0 |
| Return Force: (avg) | 10 to 20 oz | 10 to 20 oz |
Notes: Rule of thumb for moment loads:
MM-2CR:
Absolute maximum = 6 oz-in single direction relative to the farthest stage. 3 oz-in or less for best performance.
MM-2CRB:
Absolute maximum = 11 oz-in single direction relative to the farthest stage. 6 oz-in or less for best performance.
Dimensions: L x W x H (mm), not including lead screw extension
| Model No. | MM-2CR | MM-2CRB |
|---|---|---|
| -X (1 axis) Weight: |
36.5 x 19.0 x 7.6 (mm) 14 g |
31.8 x 19.0 x 7.6 (mm) 13 g |
| -XY (2 axis) Weight: |
36.5 x 36.5 x 15.2 (mm) 28 g |
31.8 x 31.8 x 15.2 (mm) 26 g |
| -XZ (2 axis) Weight: |
36.5 x 19.0 x 44.1 (mm) 33 g |
31.8 x 19.0 x 67.1 (mm) 30 g |
| -XYZ (3 axis) Weight: |
36.5 x 36.5 x 52.0 (mm) 47 g |
31.8 x 31.8 x 69.9 (mm) 43 g |
The information contained on this website is subject to change without notice. Critical dimensions or specifications should be verified with our technical support staff.
