Manual Stages
MM-3GF Series
Manual MicroMini™ Stage
FEATURES
- 3D models available soon
- Anti-Backlash Lead Screw/Nut Assembly
- Supplied with hex wrench adjuster
- Precision 80 TPI (Threads Per Inch) Lead Screw Adjustment
- X-Y configuration uses 42 mm radius for X-axis and 25 mm radius for Y-axis
- Built in Connectivity with all MM-3 motorized MicroMini™ Stages
- Fully English/Metric compatible
Goniometers are used to achieve precision angular position of an object about a fixed point located above the center of the mounting surface. Typical use would be for precision alignment of fiber optics and for beam steering applications.
When ordering multi-axis units the completed assembly will include all necessary braces, kits and hardware
GENERAL DATA:
- Load capacity: 0.45 kg (Direct top load)
- Angular Travel: ±0.175 rad
- Body Size: 66 x 19 x 21.6 (mm)
- Table radius: 25 mm & 42 mm
- Center of Rotation: 14.2 mm & 32 mm
GENERAL PRECISION
- Sensitivity: 1-2 µrad (211 µrad per lead screw turn) Zero-Backlash Drive System
Stage Configurator
MM-3GF
Select your configuration and build a part number instantly.
3DX preview
See your stage in 3D and download the CAD package.
|
|
|

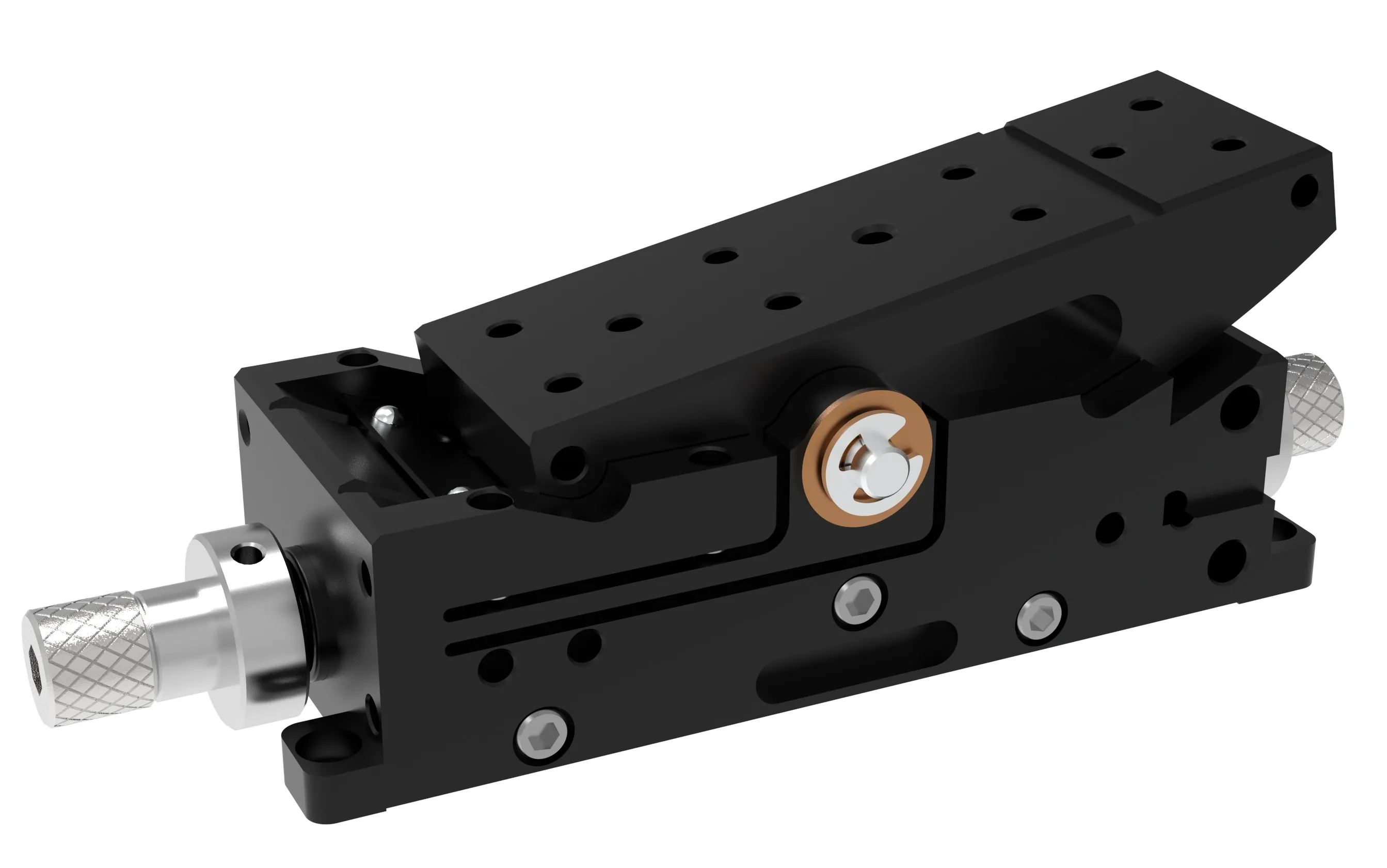

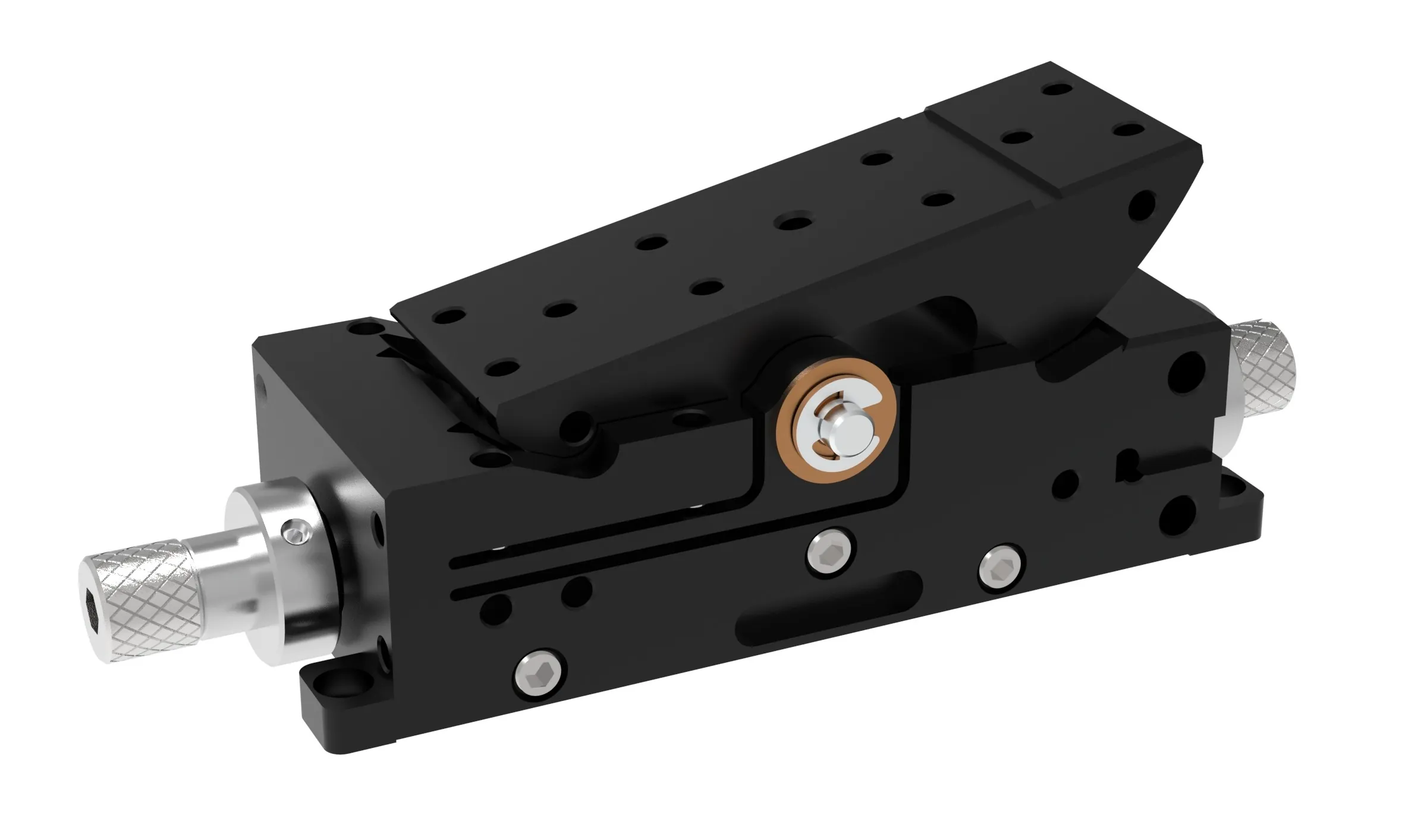

| Model No. | MM-3GF-25 | MM-3GF-42 |
|---|---|---|
| Radius: | 25 mm | 42 mm |
| Travel: | ±0.175 rad nominal | ±0.175 rad nominal |
| Sensitivity: (per lead screw rotation): | 211.4 µrad | 211.4 µrad |
| Center of Rotation: (from top surface): | 14.2 (mm) | 32 (mm) |
| Moment Load | 6 to 12 oz-in (42 to 84 mNm) |
6 to 12 oz-in (42 to 84 mNm)/td> |
| LOAD CAPACITY | ||
| Direct Top Load: | 0.45 kg (16 oz) | 0.45 kg (16 oz) |
| Pitch: | 6 oz-in (42 mNm) | 6 oz-in (42 mNm) |
| Roll: | 6 oz-in (42 mNm) | 6 oz-in (42 mNm) |
| Yaw: | 12 oz-in (84 mNm) | 12 oz-in (84 mNm) |
Dimensions: L x W x H (mm), not including lead screw extension
| Model No. | MM-2CR | MM-2CRB |
|---|---|---|
| -X (1 axis) Weight: |
66 x 19.1 x 21.6* (mm) 38 g |
66 x 19.1 x 21.6* (mm) 38 g |
| -XY (2 axis) Weight: |
66 x 19.1 x 43.2* (mm) 77 g |
66 x 19.1 x 43.2* (mm) 77 g |
*At full extended height
The information contained on this website is subject to change without notice. Critical dimensions or specifications should be verified with our technical support staff.
