Standard Precision

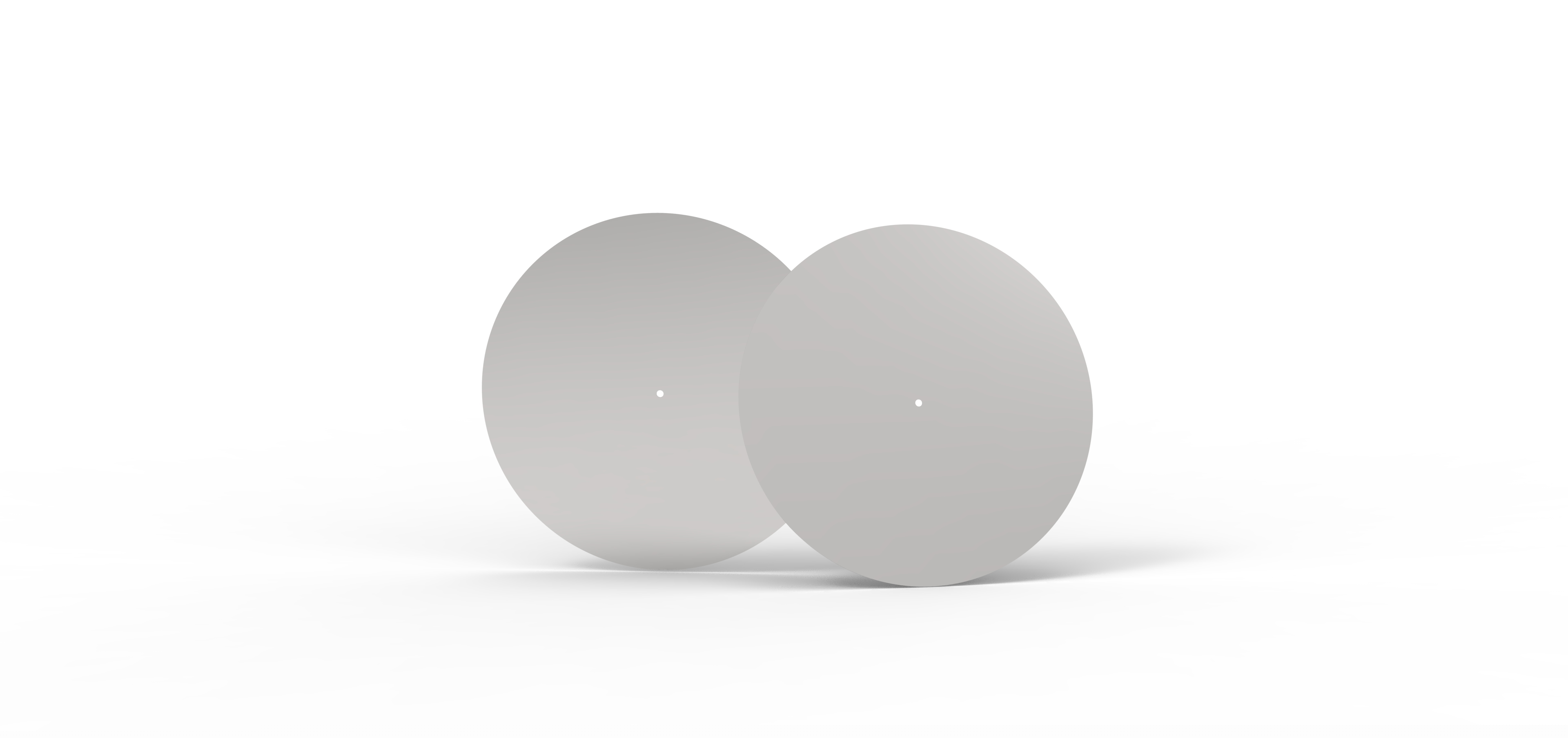

Round Apertures

Substrate Specifications

Finish: Unblackened (see options below)
Material: 300 series stainless steel, Copper, and Nickel Cobalt (except for HS option)
Diameter: 3/8 inch (0.3753 inch max.), 9.53mm (±0.0127mm)

Positional Tolerance: ø.006 inch (0.152mm)
Centration: ±0.003 inch (0.076mm)
Thickness: 0.0005 inch (12.7µm) on holes 5µm and up.
Power: Can be used on lasers lever 4 and lower

NOTE: Holes 2.0µm to 3.0µm include the HS option with a 2µm to 5µm thin Ni at the hole region.

Instant Quote Form

Standard Round Apertures

Standard Sizes

Substrate Material

AVAILABLE OPTIONS

Thickness ? TODO: Add help text for Thickness.

Unblackened (standard)

Black One Side (B-1) ? TODO: Add help text for Black One Side (B-1).

Black Two Side (B-2) ? TODO: Add help text for Black Two Side (B-2).

Entrance Flash ? TODO: Add help text for Entrance Flash.

Exit Flash ? TODO: Add help text for Exit Flash.

Heavy Substrate (HS) ? TODO: Add help text for Heavy Substrate (HS).

High Emissivity (HE) ? TODO: Add help text for High Emissivity (HE).

Close Tolerance (CT) ? TODO: Add help text for Close Tolerance (CT).

Special Tolerance (ST) ? TODO: Add help text for Special Tolerance (ST).

Tight Centration (TC) ? TODO: Add help text for Tight Centration (TC).

Precision Centration (PC) ? TODO: Add help text for Precision Centration (PC).

Calibrated (C) ? TODO: Add help text for Calibrated (C).

Mounts (M-) ? TODO: Add help text for Mounts.

Quantity:

Price Per Unit: $

Total Cost: $

Part Number:

REQUEST A SPECIAL QUOTE

If you need one of the following

Unlisted Size
Non-standard Substrate
