Manual Stages
MM-3CRD Series
COMING SOON

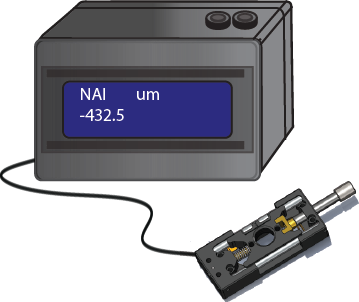

Manual Digi-Readout Stage
FEATURES
- Digital Position Readout to sub-micron precision
- Ultra Low Profile
- Zero Backlash
- 3D models available
- Built in connectivity with all MM-3M Stages
-
Fully English/Metric compatible
(taps and clearance holes)
GENERAL DATA:
- Load capacity: 0.5 kg (18 oz)
- Moment Load capacity: 6 to 15 oz-in
- Body Length: 44 mm
- Body Width: 19 mm
- Travel Ranges: 12.7 mm
- Weight: 20 g
GENERAL PRECISION
- Screw Pitch: 80 TPI (0.31725mm/turn)
- Adjustment Sensitivity: 0.5µm
- Wobble (max): 10 µrad
- Backlash: 0
- Runout (max): 0.6 µm
Stage Configurator
MM-3CRD
Select your configuration and build a part number instantly.
3D models available
| Model No. | MM-3CRD |
|---|---|
| Character Display: | 20 characters x 4 rows |
| Text: | Color on Dark Background |
| Backlight: | Low Power RGB LED |
| Viewing Area: | 95.25 x 38.1 (mm) |
| Case Dimensions, L x W x H: | 104.78 x 65.09 x 44.45 (mm) |
| Top Load: | 0.5 kg (18 oz.) |
| Pitch: | 15.5 oz-in |
| Roll: | 8 oz-in |
| Yaw: | 12.5 oz-in |
| Travel: | 12.7 mm |
| Runout: (max) | 0.6 µm |
| Return Force: (avg) | 8 to 34 oz |
Notes: Rule of thumb for moment loads: Absolute maximum of 12 oz-in for single direction relative to the farthest stage. For best performance: 6 oz-in or less
Dimensions: L x W x H (mm), not including lead screw extension
| Model No. | MM-3CRD |
|---|---|
| -X (1 axis) Weight: |
44 x 19.1 x 7.6 (mm) 17 g |
| -XY (2 axis) Weight: |
44.2 x 44.2 x 15.2 (mm) 34 g |
| -XZ (2 axis) Weight: |
44.2 x 19.1 x 51.6 (mm) 37 g |
| -XYZ (3 axis) Weight: |
44.2 x 44.2 x 59.2 (mm) 54 g |
The information contained on this website is subject to change without notice. Critical dimensions or specifications should be verified with our technical support staff.
