Motorized Stage
MM-3M-FOS Linear
Standard Motorized MicroMini™ Stages
FEATURES
- 3D models available
- Option among 4 gearhead ratios and two screw pitches
- Built-in connectivity with all MM-3M MicroMini™ Stages
- Fully English/Metric compatible
- Optical Limits
When ordering multi-axis units the completed assembly will include all necessary braces, kits and hardware
GENERAL DATA:
- Moment Load capacity: 9 to 11 oz-in
- Linear Travel: 25.4 to 63.5 mm
- Table Speed: 6.5 mm/sec
- Weight: 60.5 to 72 g
GENERAL PRECISION
- Repeatability: 4 µm
- Accuracy: 6 µm/25.4 mm
- Slider backlash: ‹50 µm
Stage Configurator
MM-3M-FOS
Select your configuration and build a part number instantly.
3DX preview
See your stage in 3D and download the CAD package.
| Model No. | Travel Range | Stage Body (L x W xH) | Weight |
|---|---|---|---|
| MM-3M-FOS-X-TR2 | 25.4 mm | 62.7 x 19.1 x 18.5 (mm) | 60.5g |
| MM-3M-FOS-XY-TR2 (2 axis) |
25.4 mm | 62.7 x 62.7 x 37.1 (mm) | 126.0g |
| MM-3M-FOS-XZ-TR2 (2 axis) |
25.4 mm | 62.7 x 19.1 x 85.7 (mm) | 128.0g |
| MM-3M-FOS-XYZ-TR2 (3 axis) |
25.4 mm | 62.7 x 62.7 x 105 (mm) | 193.0g |
| MM-3M-FOS-X-TR3 | 38.1 mm | 75.4 x 19.1 x 18.5 (mm) | 65.3 |
| MM-3M-FOS-XY-TR3 (2 axis) |
38.1 mm | 75.4 x 75.4 x 37.1 (mm) | 130.6g |
| MM-3M-FOS-XZ-TR3 (2 axis) |
38.1 mm | 75.4 x 19.1 x 94 (mm) | 139.0g |
| MM-3M-FOS-XYZ-TR3 (3 axis) |
38.1 mm | 75.4 x 75.4 x 113 (mm) | 208.0g |
| MM-3M-FOS-X-TR4 | 50.8 mm | 88.1 x 19.1 x 18.5 (mm) | 66.0g |
| MM-3M-FOS-XY-TR4 (2 axis) |
50.8 mm | 88.1 x 88.1 x 37.1 (mm) | 137.0g |
| MM-3M-FOS-XZ-TR4 (2 axis) |
50.8 mm | 88.1 x 19.1 x 108 (mm) | 139.0g |
| MM-3M-FOS-XYZ-TR4 (3 axis) |
50.8 mm | 88.1 x 88.1 x 127 (mm) | 210.0g |
| MM-3M-FOS-X-TR5 | 63.5 mm | 100.8 x 19.1 x 18.5 (mm) | 72.0g |
| MM-3M-FOS-XY-TR5 (2 axis) |
63.5 mm | 100.8 x 100.8 x 37.1 (mm) | 149.0g |
| MM-3M-FOS-XZ-TR5 (2 axis) |
63.5 mm | 100.8 x 19.1 x 120 (mm) | 151.0g |
| MM-3M-FOS-XYZ-TR5 (3 axis) |
63.5 mm | 100.8 x 100.8 x 138 (mm) | 228.0g |
| Speed/Resolution | Max. Travel Rate | Resolution | GH Ratio | TPI |
|---|---|---|---|---|
| SPRS1 | 13.2291 mm/sec | 0.9922 µm/count | 16:1 | 40 |
| SPRS2 | 6.6145 mm/sec | 0.4961 µm/count | 16:1 | 80 |
| SPRS3 | 3.3073 mm/sec | 0.2481 µm/count | 64:1 | 40 |
| SPRS4 | 1.6536 mm/sec | 0.1240 µm/count | 64:1 | 80 |
| SPRS5 | 3.3073 mm/sec | 0.0620 µm/count | 256:1 | 40 |
| SPRS6 | 0.4134 mm/sec | 0.0310 µm/count | 256:1 | 80 |
| SPRS7 | 0.2067 mm/sec | 0.0155 µm/count | 1024:1 | 40 |
| SPRS8 | 0.1033 mm/sec | 0.0078 µm/count | 1024:1 | 80 |
| Specifications | MM-3M-FOS |
|---|---|
| *Repeatability: | 4 µm |
| *Homing Repeatability: | 4 µm |
| *Accuracy (linearity): | 6 µm/25.4 (mm) |
| Speed (for standard gearhead ratio): | 6.5 mm/sec max (GH=16:1, TPI=80) |
| Slider Backlash: | < 50 µm |
| Encoder Conversion (resolution): |
0.49609 µm per count (GH=16:1, TPI=80) (download resolution data sheet) |
| Encoder resolution must be added to Repeatability and Accuracy | |
| Runout: (max) | 3 µm per 25.4 mm of travel |
| Gearhead Backlash: | 1-2 µm equivalent; can be compensated in software without overshoot |
| Motor: |
10 mm diameter, 6-12 Vdc servo, brush type (MTR-6-50E-4.5v) |
| LOAD CAPACITY: | |
| Direct Top Load: | 0.34 kg (12 oz) |
| Push | 0.25 kg (9 oz) |
| Pull | 0.25 kg (9 oz) |
| Pitch: | 11 oz-in (77 mNm) |
| Roll: | 9 oz-in (63 mNm) |
| Yaw: | 9.5 oz-in (67 mNm) |

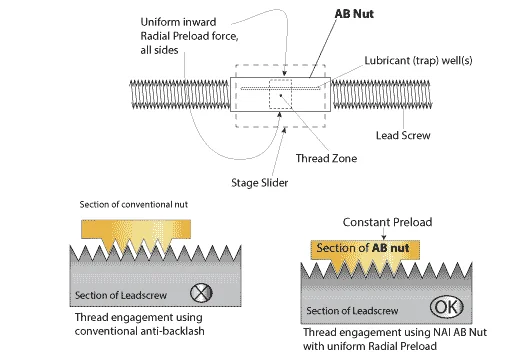

Anti-Backlash (AB) Option for MM-3M-F & MM-3M-FOS
The AB version is not limited to just providing anti-backlash; the AB option provides many additional benefits that make it the preferred choice of users.
The following is a list of benefits that make the AB option significantly important
- Reduces backlash from standard 25-50 micrometer to 2-4 micrometer.
- Reservoir of lubrication for even distribution and long retention.
- Perfect thread engagement for uniform wear and wear-in.
- Highest possible linearity; true to lead screw thread accuracy (50 µinch).
- Uniform radial pressure to eliminate tight spots that may cause servo interference.
- Self-centering; no lateral stresses to slider resulting from normal lead screw straightness error.
- Wiper action keeps threads clean and clear of dust and particles
Regular stages cannot be upgraded to AB version
