Manual Stages
Our Smallest Manual MicroMini™ Stage
FEATURES
When ordering multi-axis units the completed assembly will include all necessary braces, kits and hardware
GENERAL DATA:
GENERAL PRECISION
Stage Configurator
Select Configuration
|
|
|
|

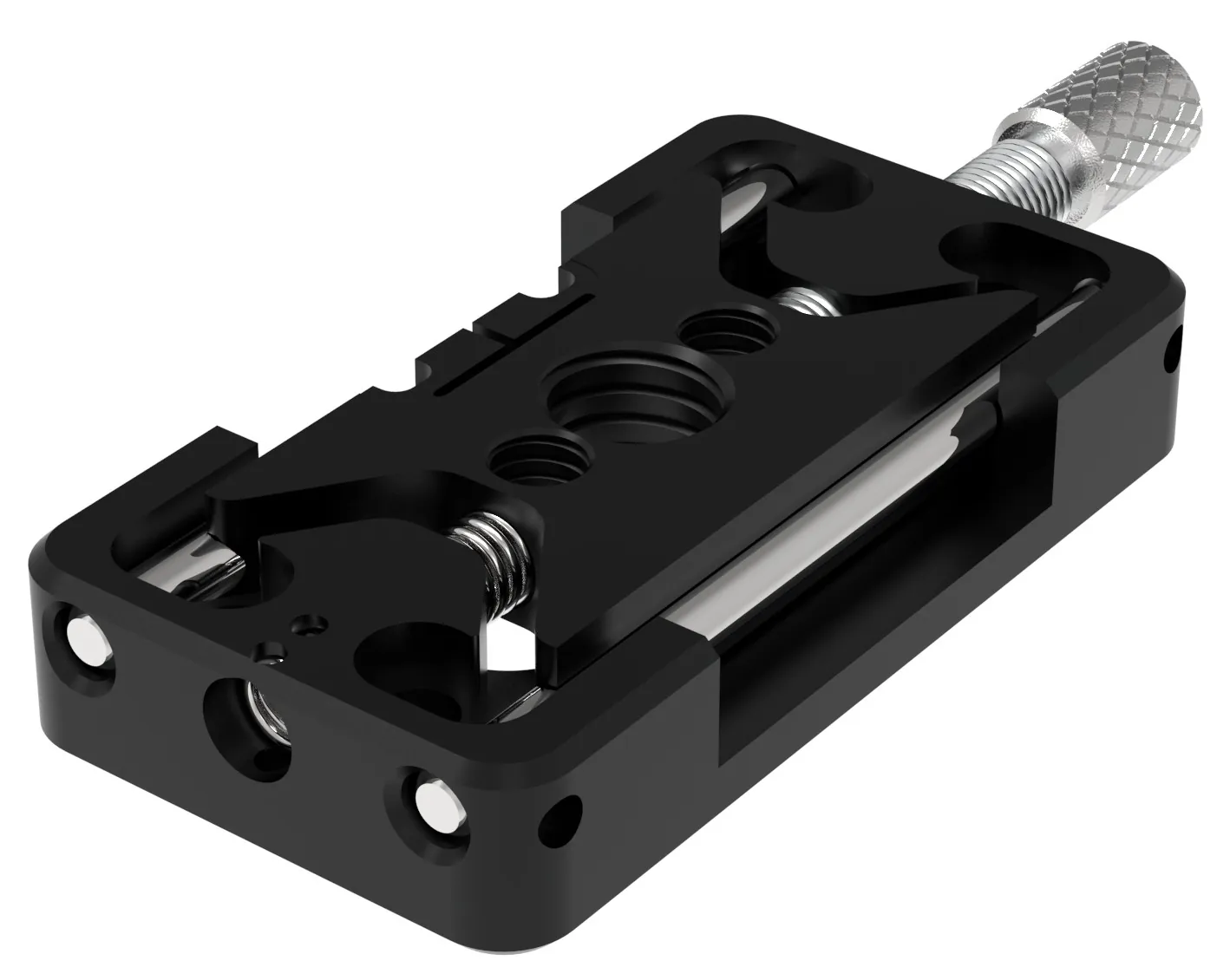

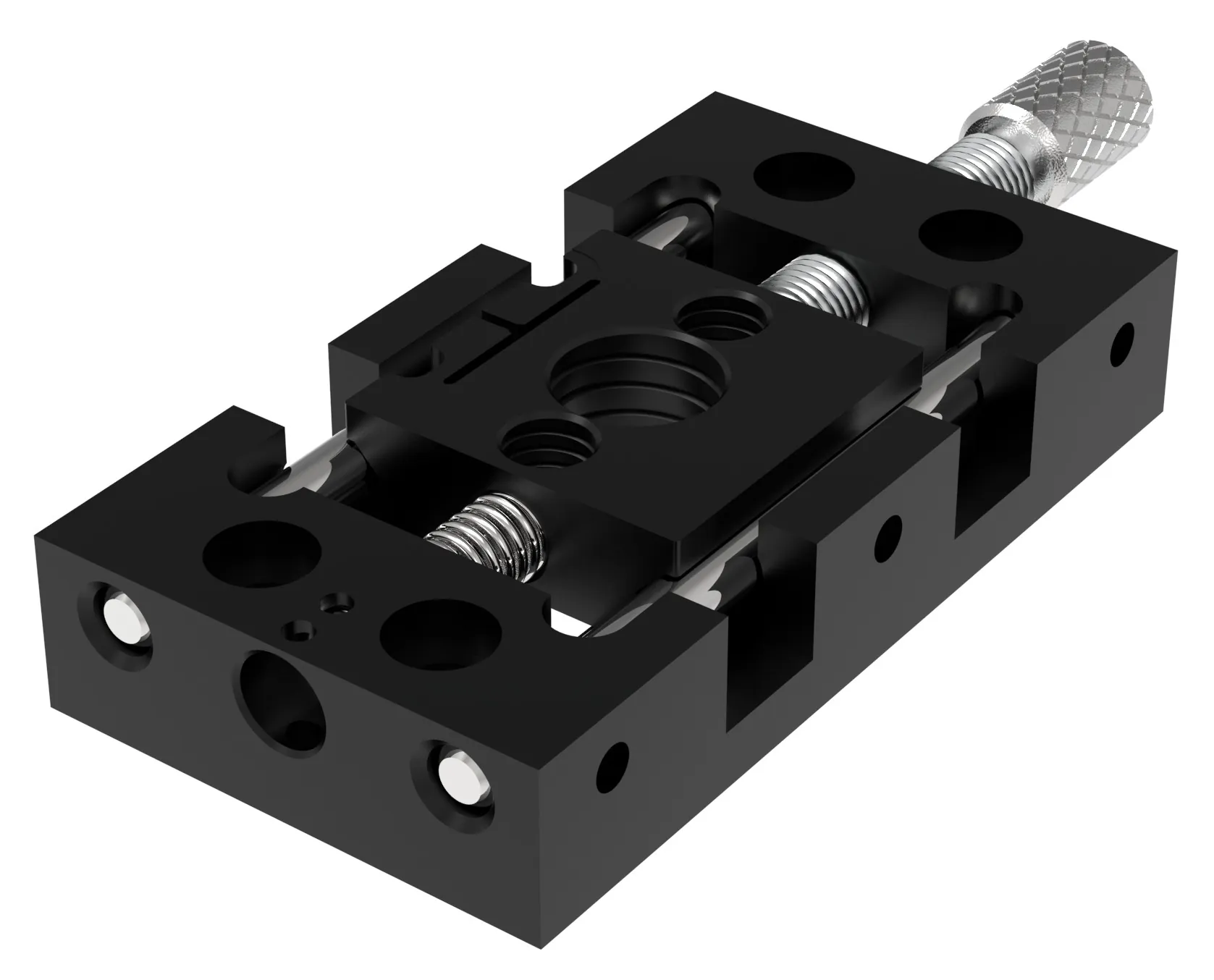

| Model No. | MM-1CR | MM-1CR-EX | MM-1CRB |
|---|---|---|---|
| Top Load: | 0.17 kg (6 oz.) | 0.17 kg (6 oz.) | 0.17 kg (6 oz.) |
| Pitch: | 6 oz-in | 6 oz-in | 8 oz-in |
| Roll: | 4 oz-in | 4 oz-in | 4 oz-in |
| Yaw: | 3.5 oz-in | 3.5 oz-in | 6.5 oz-in |
| Travel: (mm) | 3.1 | 5.1 | 3.1 |
| Return Force: (avg) | 8 to 16 oz | 4 to 16 oz | 8 to 16 oz |
| Attributes | Safety braced 1 & 2 axis closely coupled to the load | Longer travel less return force 1 & 2 axis closely coupled to the load | Sturdier design ideal for 1 to 3 axis with load away from the stage |
Moment load quick estimation:
Take the lowest moment value and apply that to the distance from the farthest stage slider.
Example:
MM-1CRB: Absolute maximum = 4 oz-in for any one direction relative to the farthest stage. For best performance: 2 oz-in or less.
Dimensions: L x W x H (mm), not including lead screw extension
| Model No. | MM-1CR | MM-1CR-EX | MM-1CRB |
|---|---|---|---|
| -X (1 axis) Weight: |
26.2 x 11.2 x 5.1 (mm) 3 g |
26.2 x 14.2 x 5.1 (mm) 5 g |
26.2 x 14.2 x 5.1 (mm) 5.5 g |
| -XY (2 axis) Weight: |
26.2 x 11.2 x 5.1 (mm) 7 g |
26.2 x 14.2 x 5.1 (mm) 10 g |
26.2 x 14.2 x 5.1 (mm) 11 g |
| -XZ (2 axis) Weight: |
26.2 x 11.2 x 5.1 (mm) 9 g |
26.2 x 14.2 x 5.1 (mm) 12 g |
26.2 x 14.2 x 5.1 (mm) 13 g |
| -XYZ (3 axis) Weight: |
26.2 x 26.2 x 36.3 (mm) 13 g |
26.2 x 26.2 x 36.3 (mm) 16 g |
26.2 x 26.2 x 36.3 (mm) 17 g |
The information contained on this website is subject to change without notice. Critical dimensions or specifications should be verified with our technical support staff.
