MM-3 Accessories | NAI

Accessories for the MM-3 Series

3DX preview

See your accessory in 3D and download the CAD package.

Select accessory to preview

Select an accessory and click preview to view it in 3D.

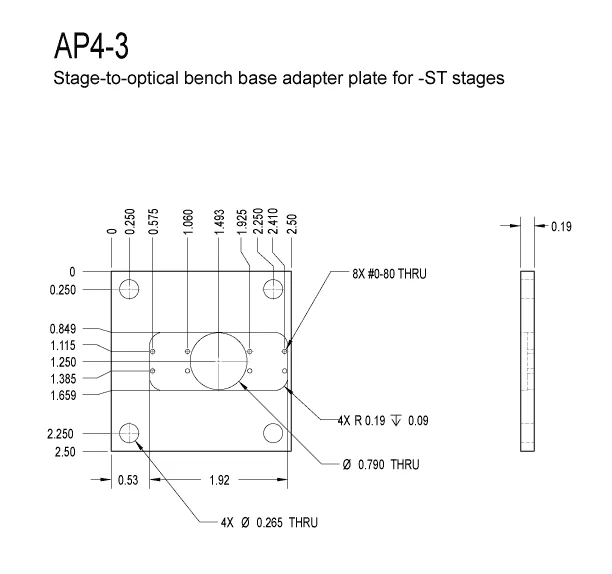

AP4-3 Adapter Plate: A multi-position mounting plate to interface with standard optical tables and accessories, or to stabilize freestanding stages.
$75.00

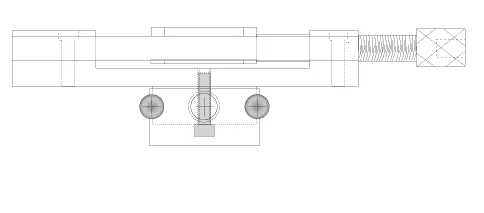

KIT-XY-3: XY-Brace and Screw Kit for XY configuration.
$35.00

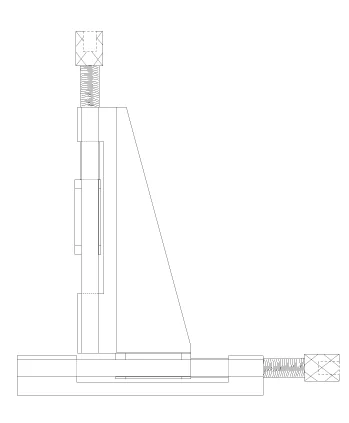

KIT-Z-3: Z-Brace and Screw Kit for XZ configuration.
$75.00

OA-3 Objective Adapter: Adapter plate to mount MM-2 to breadboard post #8 or M4.
$60.00

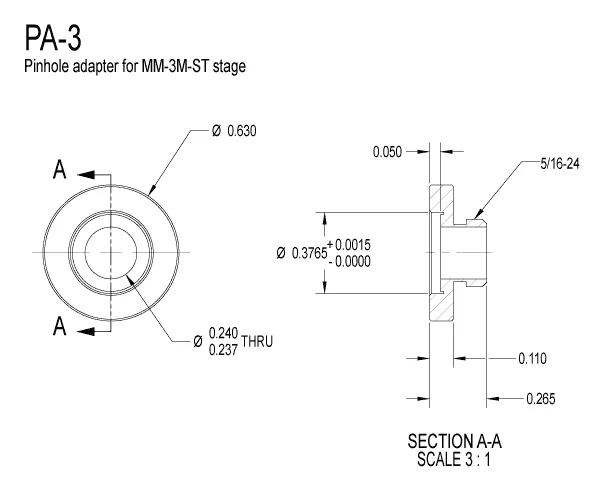

PA-3 Pinhole Adapter: Adapter and hardware to mount 0.375" dia. pinhole or slit substrates to stage.
$60.00

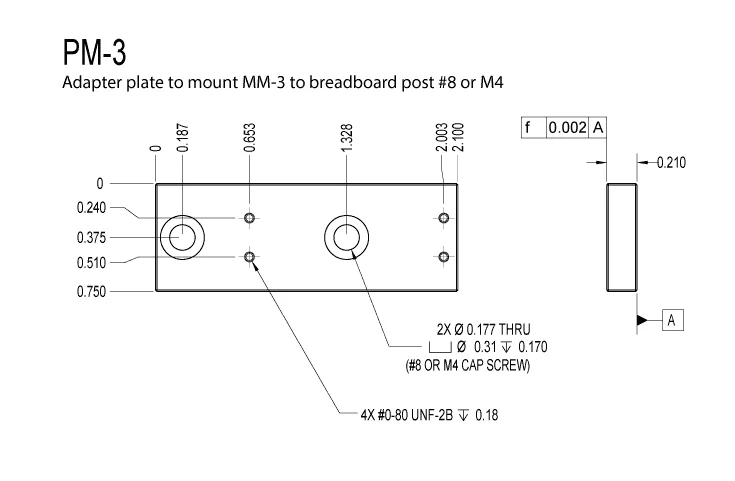

PM-3: Adapter plate to mount MM-3 to breadboard post #8 or M4.
$67.00

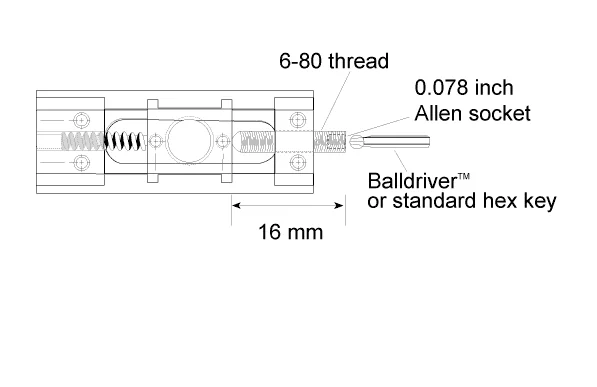

SS-3 Headless Adjusting Lead Screw: This custom designed lead screw replaces the standard thumb screw. It provides full linear travel while reducing the length of the stage by 0.4 inch (10.6 mm).
$35.00

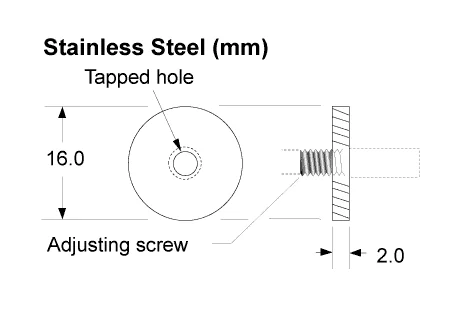

TG-3 Thumb Grip: Thumb Grip for sensitive adjustment and may alternately be used as a locking nut.
$42.00
